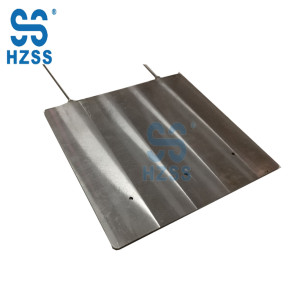

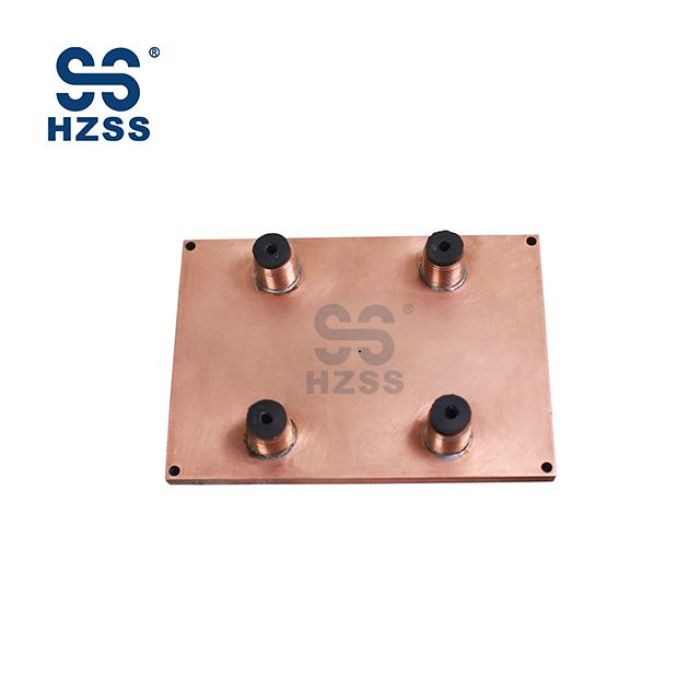

HZSS high pressure micro-channel cold plate heat exchanger

High heat transfer co-efficiency,less refrigerant charge,high compactness,excellent pressure resistance, high anticorrosion.

Categories	micro-channel heat exchanger
Brand	SS coaxial coils
Model	SS-XXXXWL-B-P
color	brass
material	oxygen-free copper, titanium, aluminum
application	laser cooling, precision instruments, aerospace, etc.
FOB port	Shanghai/Ningbo
Terms of Payment	L/C
Update Time	Feb 23,2025

Contact Now

Detail Information

Product Description

Integrated Microchannel Heat Exchanger

Product Features

1)High Heat Transfer Co-efficiency
The Microchannel Heat Exchangers are applied in improving the heat transfer performance of fluid. Thousands of micro-scale channels are integrated with the precision three-dimensional hollow bonding technology and there is no contact heat resistance, resulting significant increase in the heat transfer coefficient, up to 5000-10000(W/m2.k).

2)Less refrigerant charge
The channel volume reduces greatly compared with that of the brazed plate heat exchanger having the same heat transfer capacity, by 93%. Thus the refrigrant charge is significantly decreased.

3)High compactness

The compactness of IMHEs reach 800 to 2000 m2/m3, being about 3.5 times as that of brazed plate heat exchanger. The heat transfer caoacity per unit volume can attain 20.0W/cm3, while heat transfer capacity per unit mass reaches up to 5 kW/kg. Thus the IMHEs have the advantages of smaller volume and lighter weight in the same heat transfer capacity.

4)Excellent pressure resistance,high anticorosion

The channels of IMHE are micro-scale, and employing integrated technology makes the heat exchanger has the same strength as parent material, perssure resistance can be up to 30 MPa. Thus the IMHE is suitable for supercritical CO2 cycle. On the other hand, the anticorrosion is greatly strong because of the application of stainless steel.

5)Wide application

The IMHEs have advantages including high compactness, small volume, excellent pressure applied in laser cooling, precision instruments, armarium, aerospace, ect.

Certifications

Trade Capacity

2018 American Refrigeration Exhibition

2017 Shanghai Refrigeration Exhibition

2016 American Refrigeration Exhibition

2016 Germany Heat Exchanger Exhibition

Factory View

Hangzhou Shenshi Energy Conservation Technology Co.,Ltd was set up in the year of 2005(the original name was Hangzhou Shenshi Heat Exchanger Co.,Ltd),located in Hangzhou Jiande, Zhejiang Province , China.HZSS is one of the largest coaxial heat exchanger manufacturers and the inventor and standard maker of shell pipe heat exchanger,and owns the global-leading technology of integrated micro-channel heat exchanger and small climate system.HZSS production and marketing of high effciency and energy saving heat exchangers.

“Smart solution for you”,this is a long-term mission and unremitting goal of HZSS.HZSS will continue developing miniature,energy saving,green and low carbon heat exchanger products and devices to provide the most efficient solution to our customers and the society.

We sincerely look forward to cooperating with you,and create a better “green”tomorrow!

Package & Packing

1.Carton packing: only for small size,light weight products.

2.Plywood case packing: high resistance of brust strength,ring crush strength and tearing strength.

FAQ

1.How to choose a match heat exchanger?

Please fill in our Technology Selection Sheet, our engineer will recommend a match model to you.

2.If possible to customize? How to do?

Yes,we can supply ODM service.

We can manufacture heat exchanger according to customer's drawings.

Or we draw papers based on customer's requirements, manufacture after client confirm.

3.How long is the delivery time?

10 to 15 days for regular models, or 25 to 30 days for customized models.

4.How to packing?

Paper box and plywood pallet; or plywood case for heavy weight products.

Individual or multiple pieces per package base on weight and dimension.

5.How to pay?

In general by T/T and L/C at sight, OA is available for large quantity purchase order and long-term cooperation.

6.How to get sample?

Anytime while the sample cost and freight is paid.

7.How many is MOQ?

Over 1 pieces.

8.How long is warranty?

The warranty is 1 year,but lifelong technical support and service.
