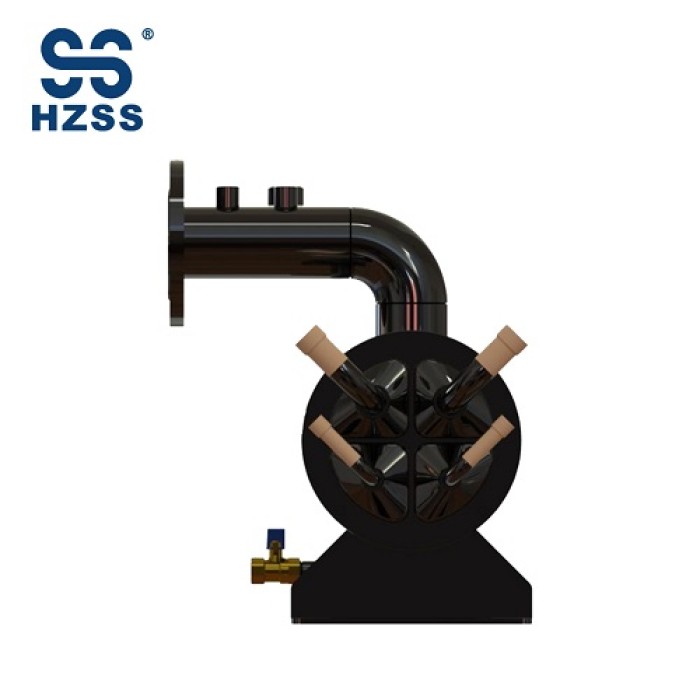

New condition Shell & tube heat exchanger

PRODUCT LIST

New condition Shell & tube heat exchanger

Categories	Shell and tube heat exchanger
Brand	SS coaxial coils
Model	SS-KG168-R-2-C
material	stainless steel
condition	new
warranty	more than 1 years
FOB port	Shanghai/Ningbo/Guangzhou
Terms of Payment	L/C
Update Time	Nov 22,2024

Contact Now

Favorites

Detail Information

Product Description

Product Introduction

Shenshi's 65 & 130KW shell and tube are used for evaporators and condensers of hot and cold water units, modular units and other units. 7mm heat transfer tube upgrade, spiral baffle optimization, and multiple Shenshi's patented distributors are used in combination, with high heat exchange efficiency ; Shenshi's shell tube is designed and manufactured strictly in accordance with GB150, 151 standards. The fluorine side head is laser welded, with high pressure, no risk of leakage from traditional gaskets, the heat exchange tube is integrally formed, no splicing, no solder joints and water Contact, freeze resistance and strong reliability; Patented optimized design of the fluorine side head saves material costs, small hosing for small heat transfer tubes, high compactness, and small material consumption.

Product Features

1. High heat exchange efficiency

2. 7mm heat transfer tube

3. Spiral baffle

4. Patent dispenser

5. Laser welding for more sealing

6. Integrated molding without splicing

7. Strong frost resistance

8. Excellent value for money

Efficient Design

Heat Transfer Tube

7mm heat transfer tube, bottom wall thickness 0.35mm, number of teeth, tooth height and helix angle are all own parameters, the result of repeated optimization.

Patent Distributor

Refrigeration: 1 mix + 2 distributions Heat pump: 1 mix + 1 distribution

Spiral Baffle

unique lock design, tight stitching in the splicing area, smooth and natural transition, uniform flow velocity on the water side, high heat exchange efficiency; no dead zone, reducing freezing risks.

Processing Technology

Laser cutting process Inner tube bending process Robot Expander

Laser welding of fluorine side head Four-axis machining center Laser welding of fluorine side head

Technical Parameters

SIZE
Model	WindpipeID (mm)	Liquid pipeID (mm)	Nozzle size	Length (mm)	Width (mm)	height (mm)
SS-KG168-R-2-C	28.6	16	DN65	1735	375	483
SS-KG168-B-2-C	28.6	16	DN65	1735	375	483
SS-KG168-G-2-C	28.6	16	DN65	1735	375	483
SS-KG219-R-2-C	35	22	DN65	1772	470	498
SS-KG219-R-4-C	28.6	16	DN65	1768	470	498
SS-KG219-B-2-C	35	22	DN65	1772	470	498
SS-KG219-B-4-C	28.6	16	DN65	1768	470	498
SS-KG219-G-2-C	35	22	DN65	1772	470	498

Certifications

Trade Capacity

2019 AHR in Atlanta

2018 Germany Refrigeration Exhibition

2019 China Refrigeration Exhibition

Factory View

Hangzhou Shenshi Energy Conservation Technology Co.,Ltd was set up in the year of 2005(the original name was Hangzhou Shenshi Heat Exchanger Co.,Ltd),located in Hangzhou Jiande, Zhejiang Province , China.HZSS is one of the largest coaxial heat exchanger manufacturers and the inventor and standard maker of shell pipe heat exchanger,and owns the global-leading technology of integrated micro-channel heat exchanger and small climate system.HZSS production and marketing of high effciency and energy saving heat exchangers.

“Smart solution for you”,this is a long-term mission and unremitting goal of HZSS.HZSS will continue developing miniature,energy saving,green and low carbon heat exchanger products and devices to provide the most efficient solution to our customers and the society.

We sincerely look forward to cooperating with you,and create a better “green”tomorrow!

Package

1.Carton packing: only for small size,light weight products.

2.Plywood case packing: high resistance of brust strength,ring crush strength and tearing strength.

FAQ

1.How to choose a match heat exchanger?

Please fill in our Technology Selection Sheet, our engineer will recommend a match model to you.

2.If possible to customize? How to do?

Yes,we can supply ODM service.

We can manufacture heat exchanger according to customer's drawings.

Or we draw papers based on customer's requirements, manufacture after client confirm.

3.How long is the delivery time?

10 to 15 days for regular models, or 25 to 30 days for customized models.

4.How to packing?

Paper box and plywood pallet; or plywood case for heavy weight products.

Individual or multiple pieces per package base on weight and dimension.

5.How to pay?

In general by T/T and L/C at sight, OA is available for large quantity purchase order and long-term cooperation.

6.How to get sample?

Anytime while the sample cost and freight is paid.

7.How many is MOQ?

Over 20 pieces.

8.How long is warranty?

The warranty is 1 year,but lifelong technical support and service.
