In the competitive world of HVAC manufacturing, every square inch matters. Modern building designs demand smaller, more powerful systems. For industry leaders like Daikin, this presents a significant engineering challenge: how do you boost the efficiency of a heat pump without increasing its physical footprint? The answer lies in the core of the system—the HVAC heat exchanger.
This case study explores how Shenshi partnered with Daikin to overcome this critical hurdle. By implementing a revolutionary compact heat exchanger, we not only met the demand for a smaller unit but also achieved a substantial increase in overall heat pump efficiency. This is the story of how innovative design solves real-world problems.

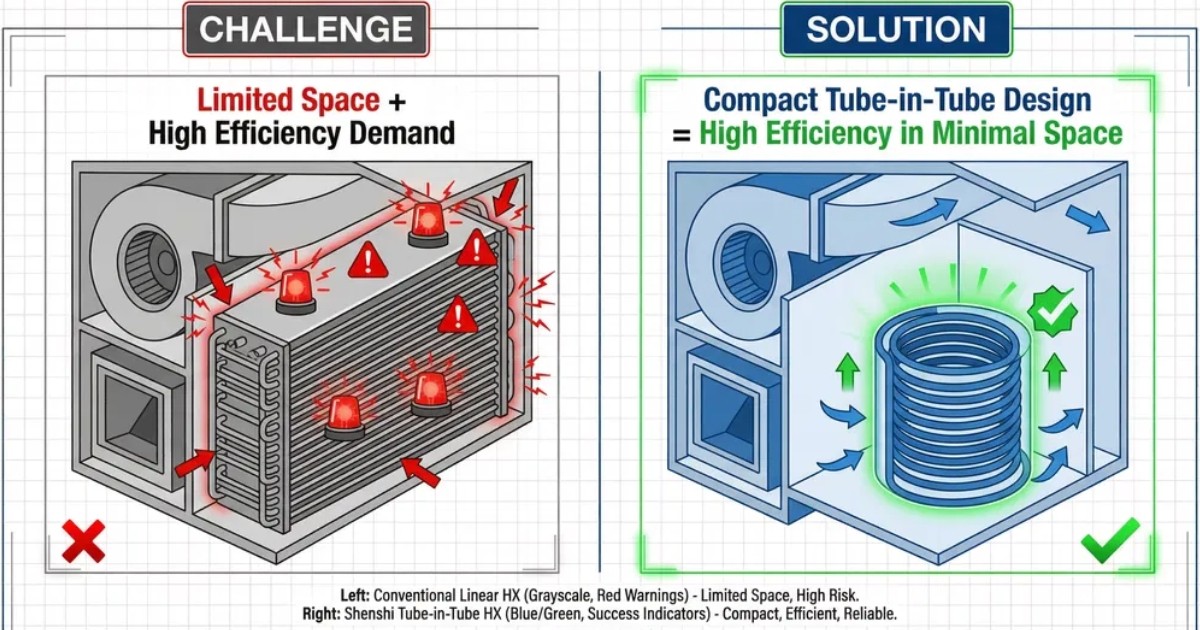

The Challenge: Compact HVAC Units Demand More Efficiency
The primary goal for Daikin's new heat pump line was clear. They needed to develop a unit that was both powerful and compact. However, the laws of thermodynamics are unforgiving. Typically, higher efficiency requires a larger surface area for heat transfer, leading to a bigger, bulkier HVAC heat exchanger.
The Space Constraint Problem in Modern HVAC Design
Modern architectural trends favor minimalist aesthetics and optimized use of space. This puts pressure on HVAC manufacturers to shrink their equipment. For Daikin, the existing heat exchanger designs were too large for their new compact unit's chassis. They were caught in a classic engineering dilemma: shrink the unit and sacrifice performance, or keep the performance and fail the size requirement. This is a common issue where a standard heat exchanger for heat pump systems falls short.
Why High Efficiency is Non-Negotiable for Heat Pumps
At the same time, market and regulatory demands for energy efficiency have never been higher. A heat pump's performance is a key selling point. Consumers want lower energy bills, and governments mandate stricter efficiency standards. A drop in performance was not an option. The challenge was to find a heat exchanger design that could deliver superior thermal performance within a severely restricted space.
Why a High-Efficiency Heat Exchanger for Heat Pumps is Crucial
The heat exchanger is the heart of a heat pump. It's where the critical process of transferring thermal energy occurs. The efficiency of this single component has a ripple effect across the entire system. An inefficient heat exchanger forces the compressor to work harder, consuming more electricity and increasing wear and tear.
A high-performance tube in tube heat exchanger ensures maximum thermal energy is transferred from the refrigerant to the water, or vice versa. This directly translates to:
Lower Energy Consumption
Less work for the compressor means lower electricity bills for the end-user.
Higher Performance Ratings
Better efficiency ratings (SEER/HSPF) make the product more competitive.
Increased System Reliability
Reduced strain on components leads to a longer operational lifespan.
Faster Heating/Cooling
Efficient heat transfer allows the unit to reach the desired temperature more quickly.
For Daikin, optimizing the HVAC heat exchanger was not just an improvement—it was the key to unlocking the full potential of their new product line.
The Solution: Shenshi's Compact Tube-in-Tube Heat Exchanger

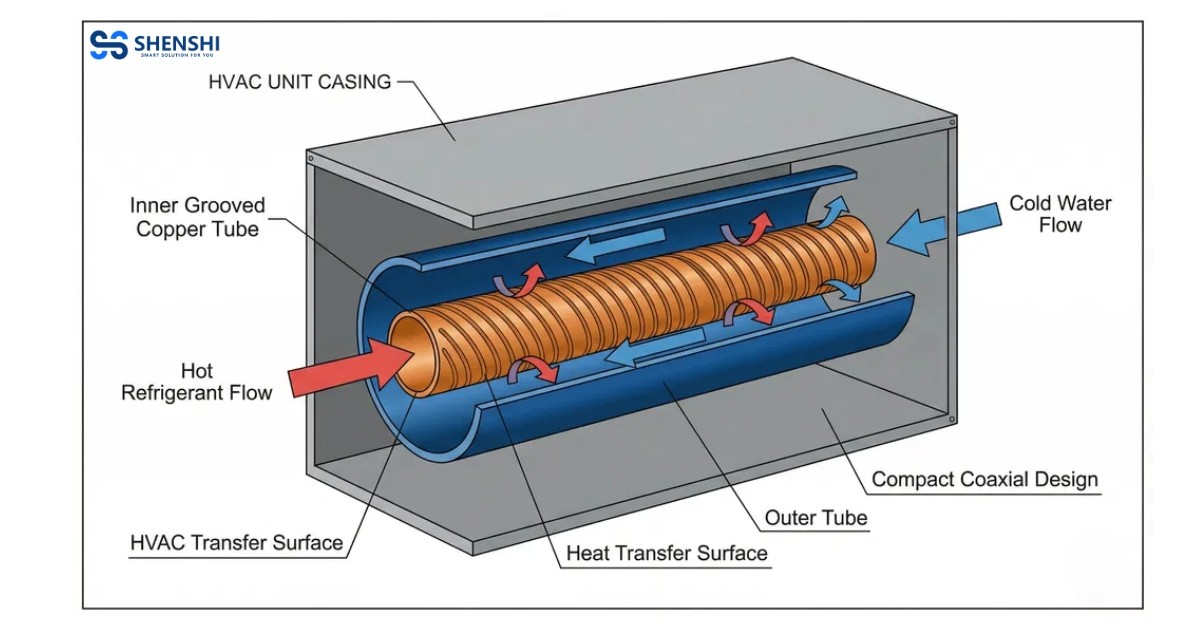

Faced with this challenge, Daikin turned to Shenshi's expertise in thermal management. We proposed our cutting-edge coaxial heat exchanger, specifically engineered for high performance in tight spaces. Unlike traditional shell and tube or plate heat exchangers, our design utilizes a unique tube-in-tube configuration with a spiraled and grooved inner tube.

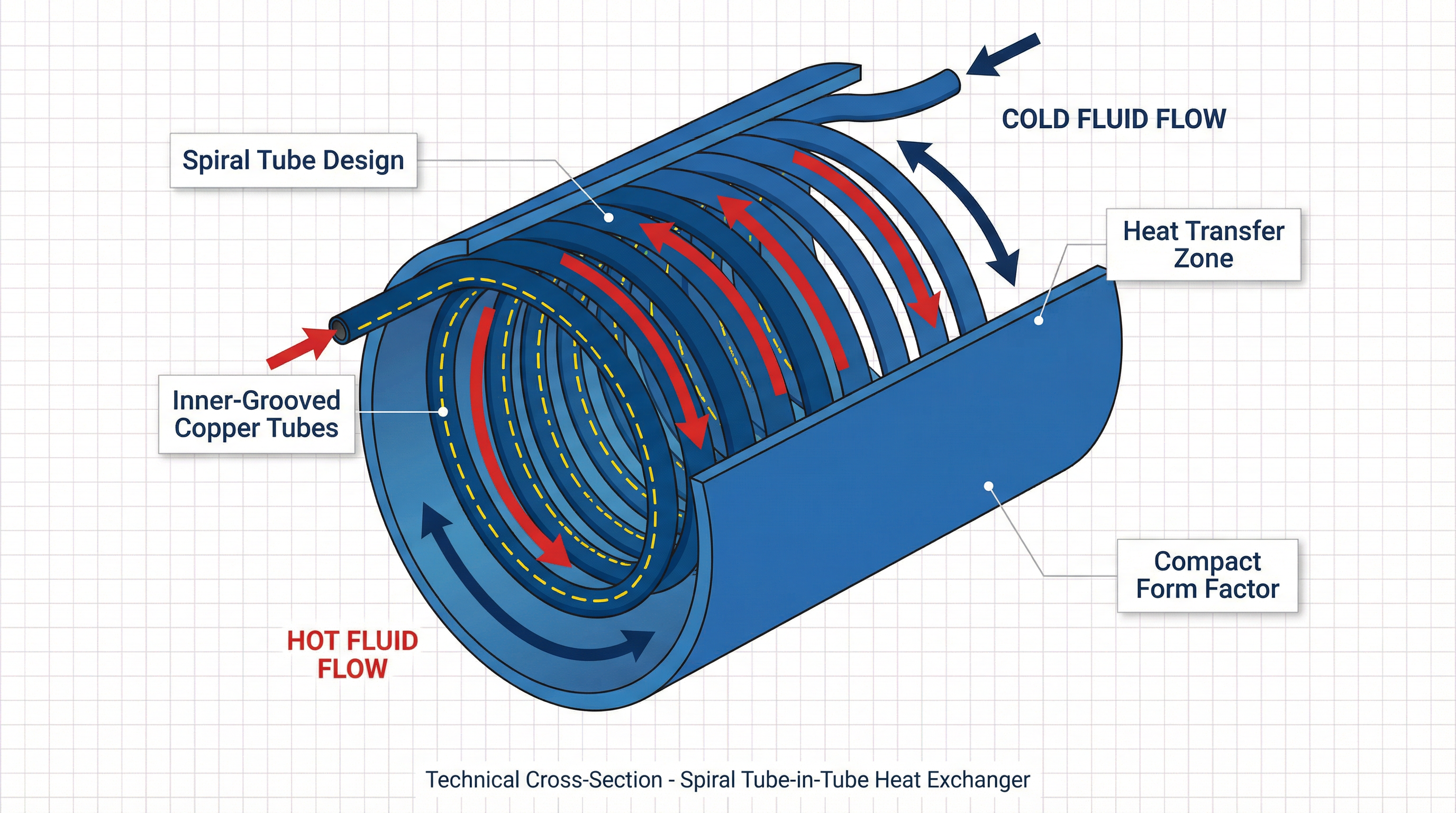

This innovative heat exchanger design creates turbulent flow, which dramatically increases the heat transfer efficiency. The spiraled construction allows a much longer tube to be packed into a compact volume, maximizing surface area without increasing the physical dimensions. This was the breakthrough Daikin needed.
Key Benefits of Shenshi's HVAC Heat Exchanger
Our solution provided Daikin with a multi-faceted advantage. The benefits went far beyond just solving the space issue, addressing long-term reliability and performance.
High-Efficiency Heat Transfer
The inner-grooved, spiraled tube design maximizes turbulence and surface area, delivering up to 30% more efficiency than conventional designs of the same size.
Freeze & Corrosion Resistant
Built with robust materials, our corrosion resistant heat exchanger is designed to withstand harsh operating conditions, including potential freeze-thaw cycles, ensuring long-term reliability.
Easy to Clean
The simple, continuous tube design minimizes areas where sediment can accumulate, making maintenance and cleaning straightforward.
Anti-Fouling Design
The turbulent flow naturally scrubs the tube walls, reducing the buildup of scale and foulants that degrade performance over time. This is a critical feature for maintaining peak heat pump efficiency.
The Results: Transforming Daikin's Heat Pump Design
The implementation of Shenshi's compact heat exchanger was a resounding success. The results were immediate and measurable, allowing Daikin to launch a product that was previously thought to be impossible.
By integrating our HVAC heat exchanger, Daikin achieved a 40% reduction in the space required for the component, while simultaneously boosting overall unit efficiency by an impressive 20%. This allowed them to not only meet their design goals but to exceed them, setting a new benchmark in the market for compact, high-efficiency heat pumps.
Technical Specifications
Below are the specifications for the Shenshi model used in the Daikin heat pump.
Why Choose Shenshi for Your HVAC Heat Exchanger Needs?
This collaboration with Daikin is a testament to our commitment to innovation and problem-solving. We understand that in the HVAC industry, performance, reliability, and form factor are paramount. Our tube in tube heat exchanger technology is not just a component; it's a competitive advantage.
Whether you are designing a new system or looking to improve an existing one, Shenshi provides the thermal management solutions you need to succeed. Our engineering team works closely with you to develop a heat exchanger for heat pump applications that meets your exact specifications.
About Shenshi
Founded in 2005, Hangzhou Shenshi Energy Conservation Technology Co., Ltd. (SHENSHI) is a high-tech enterprise specializing in energy-efficient heat transfer and microreaction technologies. As a pioneer in low-carbon thermal management, Shenshi designs and manufactures high-performance heat exchangers and micro-reactors serving industries such as energy, marine & offshore engineering, hydrogen, pharmaceuticals, and advanced manufacturing.
With solutions deployed across more than 40 countries, Shenshi is committed to delivering reliable, efficient, and sustainable thermal technologies for demanding industrial applications.
