Printed Circuit Heat Exchangers (PCHEs) in Supercritical CO2 Brayton Cycles: Efficiency and Innovation
PCHEs in Supercritical CO2 Brayton Cycles
Printed Circuit Heat Exchangers (PCHEs) are transforming thermal management in advanced energy systems. They excel in supercritical CO2 (sCO2) Brayton cycles, delivering high efficiency and compactness. Shenshi Technology leads in designing PCHEs for these systems. Our solutions support clean energy applications like solar, nuclear, and waste heat recovery.
This page explores how PCHEs enhance sCO2 Brayton cycles. We cover their design, performance, and real-world applications. Learn why Shenshi’s PCHEs are trusted globally.
Why Choose PCHEs for sCO2 Brayton Cycles?
Supercritical CO2 Brayton cycles achieve thermal efficiencies above 45%, surpassing traditional steam cycles (35%). PCHEs are critical to this performance. Their unique design makes them ideal for high-pressure, high-temperature environments.
Key Advantages of PCHEs
- ·Compact Design: PCHEs offer a surface area-to-volume ratio exceeding 2500 m²/m³. They are 1/5 the size of shell-and-tube heat exchangers.
- ·High Durability: Handle pressures up to 60 MPa and temperatures from 73 K to 970 K.
- ·Superior Efficiency: Achieve heat transfer coefficients of 300–650 W m⁻² K⁻¹ with 98% effectiveness.
- ·Versatility: Support diverse heat sources like solar, nuclear, and gas turbines.
Shenshi Technology’s PCHEs, introduced in 2011, are tailored for sCO2 systems. Our products power marine, LNG, and renewable energy projects. They deliver reliability and performance.

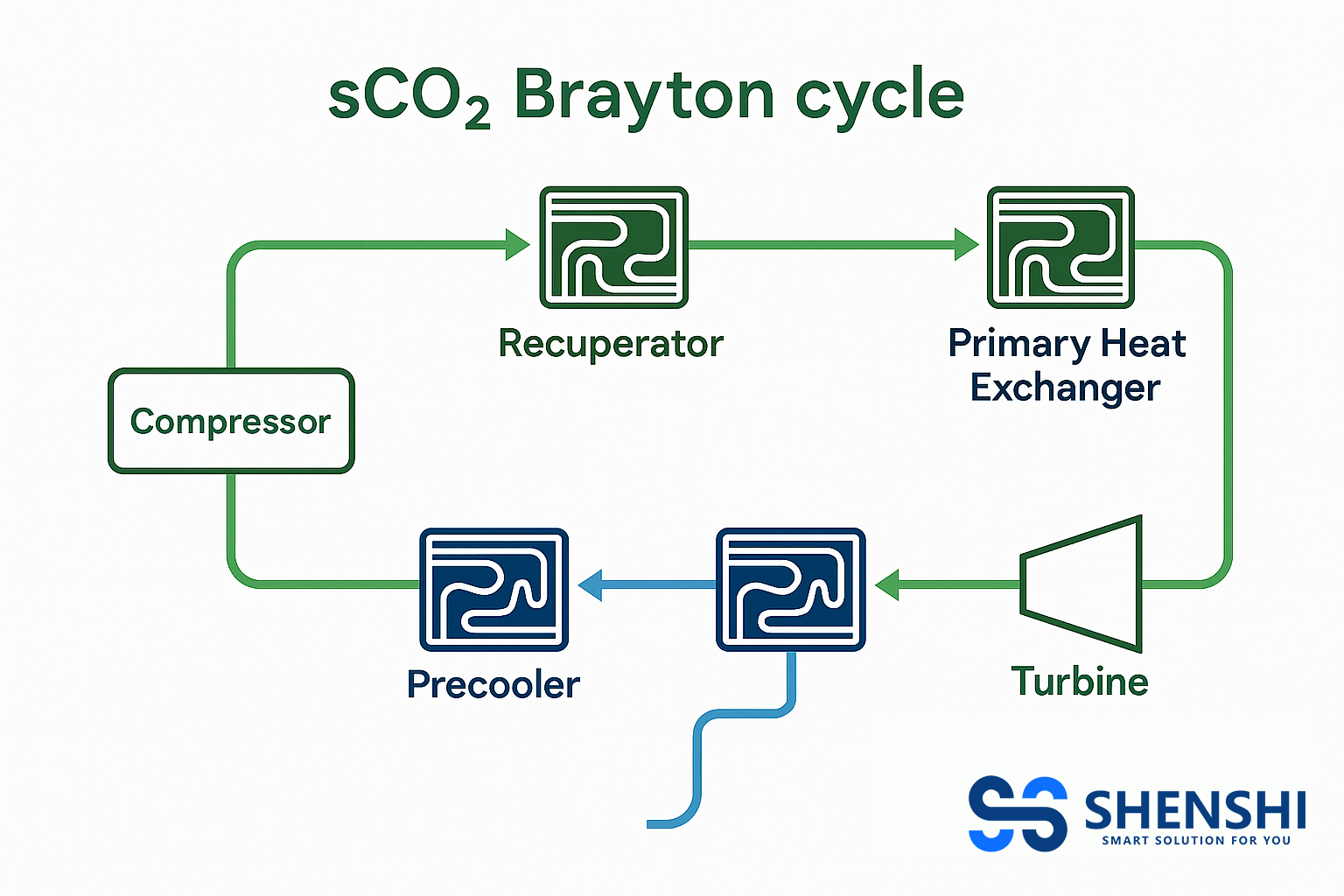

Roles of PCHEs in sCO2 Brayton Cycles
In sCO2 Brayton cycles, CO2 operates above its critical point (304.128 K, 7.3773 MPa). This creates unique fluid properties. PCHEs enable compact, efficient systems. They serve multiple roles across cycle configurations.
PCHE Functions
Recuperators
Recover 60–70% of thermal energy. Transfer heat from turbine exhaust to compressor outlet. Shenshi’s zigzag and airfoil fin designs reduce pressure drop.
Precoolers
Cool sCO2 near the pseudo-critical point. Ensure optimal compressor conditions. Zigzag-channel PCHEs reduce precooler size by 68%.
Primary Heat Exchangers
Couple heat sources like molten salt to sCO2 cycles. Used in CSP and nuclear applications.
Shenshi’s PCHEs excel in these roles. Our 12 MW compressor aftercooler for CNOOC demonstrates large-scale capability.
Design Considerations for PCHEs
Optimizing PCHEs for sCO2 Brayton cycles requires precision. Key factors ensure performance and efficiency.
Critical Design Factors
| Factor | Details |
|---|---|
| Channel Configurations | Zigzag, S-shaped, airfoil fins. Zigzag channels boost Nusselt number by 4.1x. |
| Material Selection | Stainless steel, nickel alloys, titanium. Ensure corrosion resistance. |
| Thermal-Hydraulic Performance | Achieve 2.53 kW/m²·K heat transfer near pseudo-critical point. |
| Size Optimization | Hybrid PCHEs reduce weight for marine applications. |
Shenshi’s R&D optimizes these factors. Our trapezoidal PCHE prototype enhances performance in sCO2 loops.
Shenshi Technology’s Role in sCO2 Applications
Shenshi Technology drives clean energy innovation. Our PCHEs power sCO2 Brayton cycles globally.
Key Applications
- ·Marine and Offshore: CCS-certified PCHEs in LNG platforms. Example: 12 MW aftercooler for CNOOC.
- ·Concentrated Solar Power: Couple molten salt to sCO2 cycles. Reduce thermal storage costs by 35%.
- ·Nuclear Energy: Enhance efficiency in next-generation reactors.
Our partnerships with CNOOC and global institutions ensure world-class quality. Shenshi’s PCHEs fill domestic technology gaps.
Case Study: CARBOSOLA Project
Shenshi’s PCHE recuperator was tested in the CARBOSOLA project. The facility, at Helmholtz-Zentrum Dresden-Rossendorf, operated at 520°C and 300 bar. Our PCHE achieved a 1.32 kg/s mass flow rate. It demonstrated superior heat transfer and compactness.
This project highlights Shenshi’s expertise in sCO2 applications. Our PCHEs deliver reliability under extreme conditions.
Optimizing PCHEs for Efficiency
Shenshi employs advanced techniques to maximize PCHE performance.
Optimization Strategies
- CFD Simulations: Analyze channel designs. Sandwiched-zigzag channels boost heat transfer by 84.6%.
- Exergy Analysis: Minimize energy loss at 715.2 K and 22.5 MPa.
- Custom Designs: Tailor PCHEs for specific sCO2 roles.
Our maintenance services ensure long-term performance. Regular cleaning prevents efficiency loss.
Why Shenshi Technology?
Shenshi leads in PCHE innovation. Our strengths include:
- ·Expertise: Dedicated R&D institute with proprietary technologies.
- ·Global Reach: Partnerships with CNOOC and international research bodies.
- ·Comprehensive Support: From design to maintenance.
Conclusion
Printed Circuit Heat Exchangers are key to sCO2 Brayton cycle success. They offer unmatched efficiency and compactness. Shenshi Technology delivers cutting-edge PCHEs for clean energy solutions. Our products power solar, nuclear, and marine projects.
Ready to enhance your sCO2 system? Contact Shenshi today.
